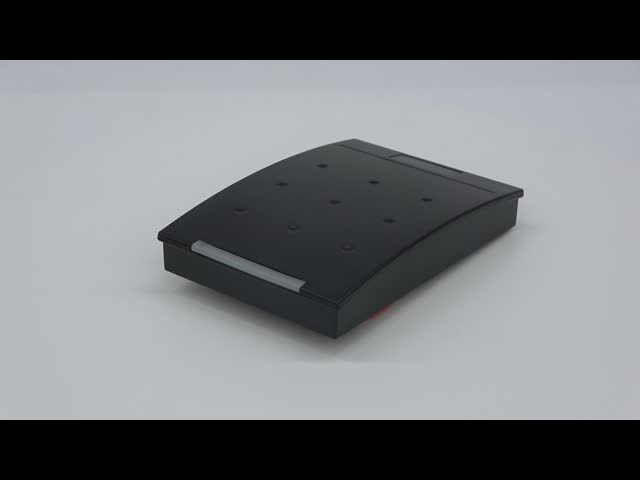

This is a HF micro power desktop small reader supporting a single protocol. It is a card issuer reader specially designed to read ISO1443A protocol. The product integrates read-write module and antenna, and there is only one USB interface. Users only need to connect to the computer through USB and open the software. The product has fast and sensitive reading performance and anti-collision technical characteristics, which can provide you with a convenient use experience when you need it. It is the choice of high-performance products for desktop card issuance, access control, electronic bill inspection and other purposes.
Product Features:
| Technical Specification | ||
| Model | RL153 | |
| Operating Frequency | 13.56 MHz (±7KHz) | |
| Compatible Protocols | ISO 14443A | |
| Communication Interface | USB | |
| Reading Range | 7cm | |
| Simulation Keyboard | Support | |
| Working Voltage | DC 5V (USB power supply) | |
| Max Power Consumption | 0.5W | |
| Dimension | 105*70*10mm | |
| Weight | 46g | |
Product Application:
Due to small appearance, speedy transportation, superior quality and cost-effective, the USB RFID reader is widely used in many RFID application system such as Logistics, Personnel Identification, Access Control, Foods and Medicines Anti-counterfeit and Quality Supervision, etc.
